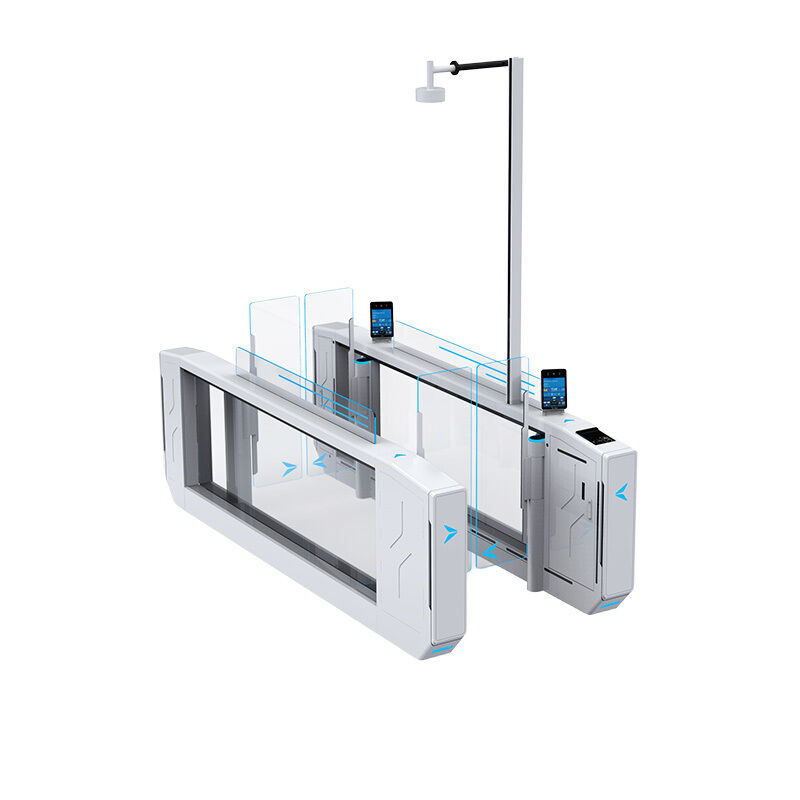

The M3620-AB Turnstile Gate is engineered for high-security airport immigration and inspection checkpoints, featuring advanced access control technology and robust construction for reliable performance in demanding environments.
| Parameter | Specification |
|---|---|
| Size | 3200 × 210 × 1020 (mm) |
| Chassis | Top cover: 2.0mm cold roller with powder coating Housing: 2.0mm cold roller with powder coating Filling Panel: 10mm |
| Movement | Mechanism: Servo sliding gate Door panel: 10mm Transparent PC Pass Lane: 600-900mm |
| Electronic Control | Control board: Servo standard board + AB linkage Motor: Brushless servo 40:1 100W IR sensor: Light Curtain 64 Points + 20 pairs + 3D Visual Module Air switch: 2P |
| Power Supply | 24V 500W / 12V 150W |
| Accessories | Connection cable: 5m 2×1.0m² RVV Network cable: 5m with crystal tips on both ends |
| Package | Pearl cotton: Foam liner Cardboard box: 3260 × 270 × 1080 |
